TipperMax Transfer Trailers

Maximize Your Haul

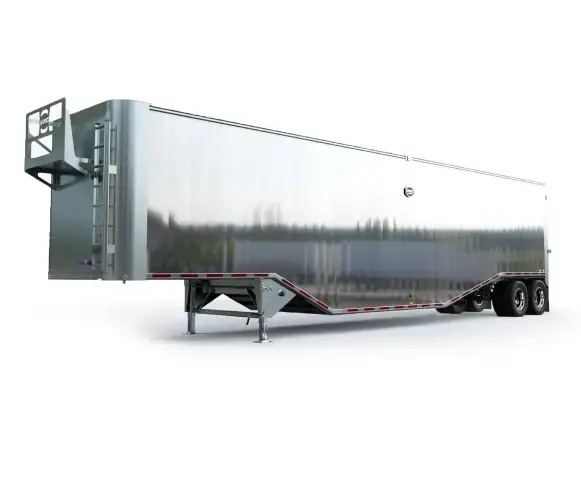

TipperMax™ is an aluminum drop center tipper trailer and a significant advancement in waste transportation. The innovative aluminum design features a lowered possum belly floor design, enabling higher waste capacities while maintaining standard ride height. Compared to drop deck tipper trailer designs, TipperMax eliminates the need for low-profile suspensions and tires, enhancing operational efficiency and maximizing payload.

Request more info

Haul More.

Waste Less.

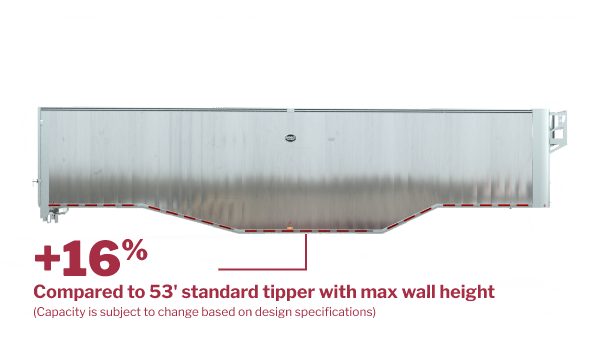

With a lowered center possum belly style floor, TipperMax provides 16% more load capacity than a standard tipper (when comparing 53' designs). More capacity means fewer trips to and from waste sites. Note that capacity is subject to change based on design specifications.

Efficient

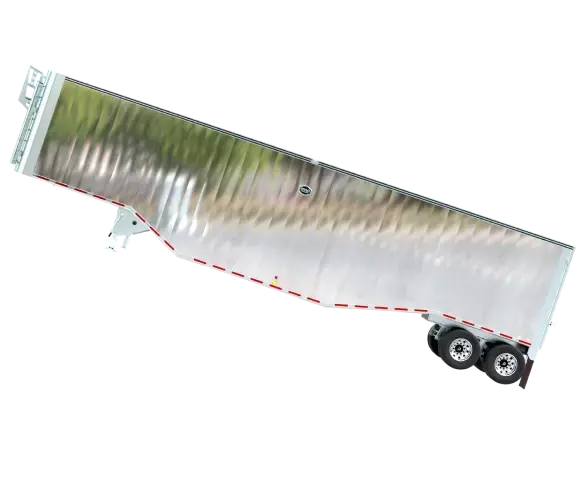

Slope Angle

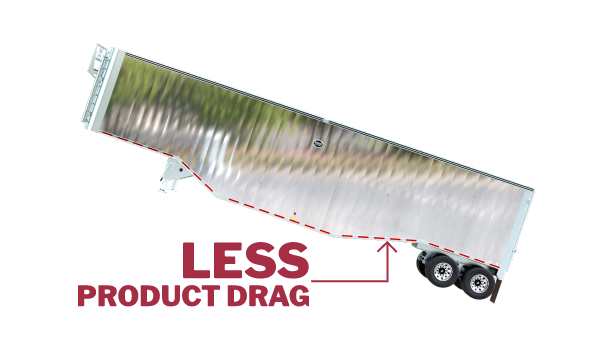

The highly engineered angle of the dropped center floor unloads more efficiently, reducing product drag. Over time, there is less wear and tear, which improves the lifetime performance of the TipperMax compared to other trailers in the industry.

TipperMax Specifications

Material	6061 Aluminum Extrusions
Sidewall	15.5”W X 2.25”D Extruded Hollow Core Panels are Standard in .150 Inner Wall Thickness, Optional .200 Inner Wall Thickness
Flooring	.1/4” Standard. 3/8” & ½” Optional
Bottom Rail	Hollow Core 6061 T6 Extruded Aluminum Engineered to Protect Lights and Enclosed Wiring Harness from Weather and Road Debris
Top Rail	Standard and Heavy-Duty Option
Gate	.150” Hollow Core Panel Overslung Gate with Greaseless Hinge and Stainless Pin
Landing Gear	Jost H451 Galvanized Steel Dollies are Standard. Holland is Optional

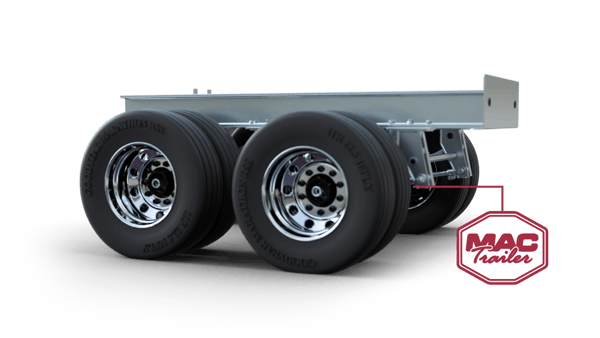

Suspension	MAC Galvanized Spring Ride, Hendrickson Air Ride
Literature	MAC Trailer TipperMax Product Brochure, Transfer Trailers Owners Manual
