Standard Flatbed Trailer

Flatbed Options
for Every Fleet

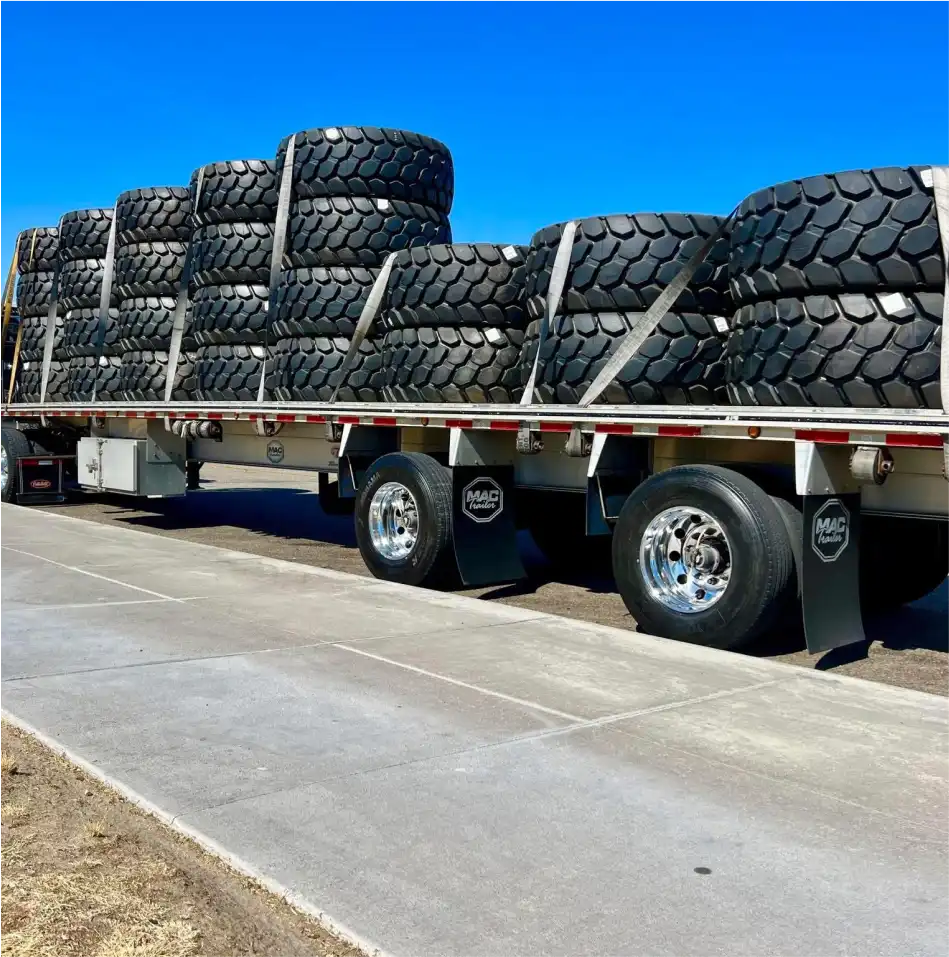

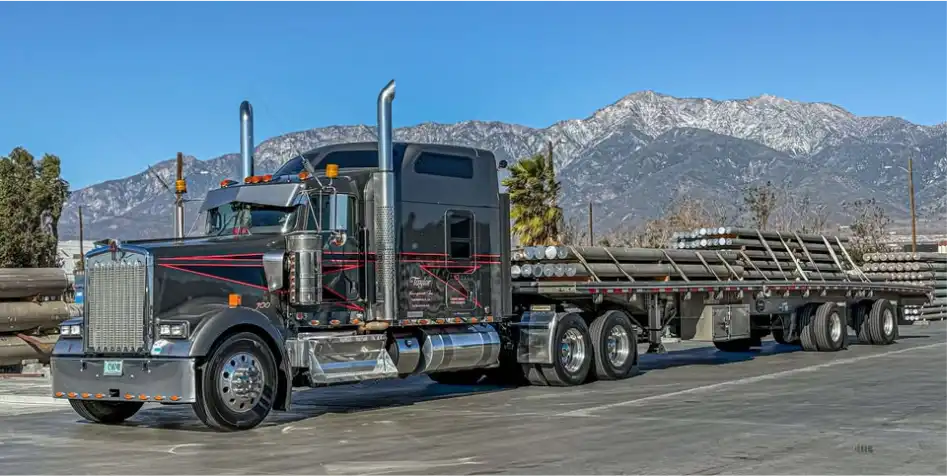

The standard flatbed trailer can handle whatever you need. Haul loads that are evenly distributed or heavily concentrated. No matter if you are hauling coils, lumber, steel plate, pipe or home building materials, this platform trailer can handle it all. With multiple options available, you can customize the trailer for your needs. Explore how this fleet-style flatbed can add strength to your fleet.

Request more info

Aluminum

Construction

Outfit your fleet with efficiency you can count on. The standard flatbed trailer is completely made of aluminum for lightweight benefits. There are several beam sizes available to customize the trailer for your intended load and freight. Want to step up your haul? Configure your platform trailer with the optional MAC Step Up™ feature.

Reduce Your Total

Cost of Ownership

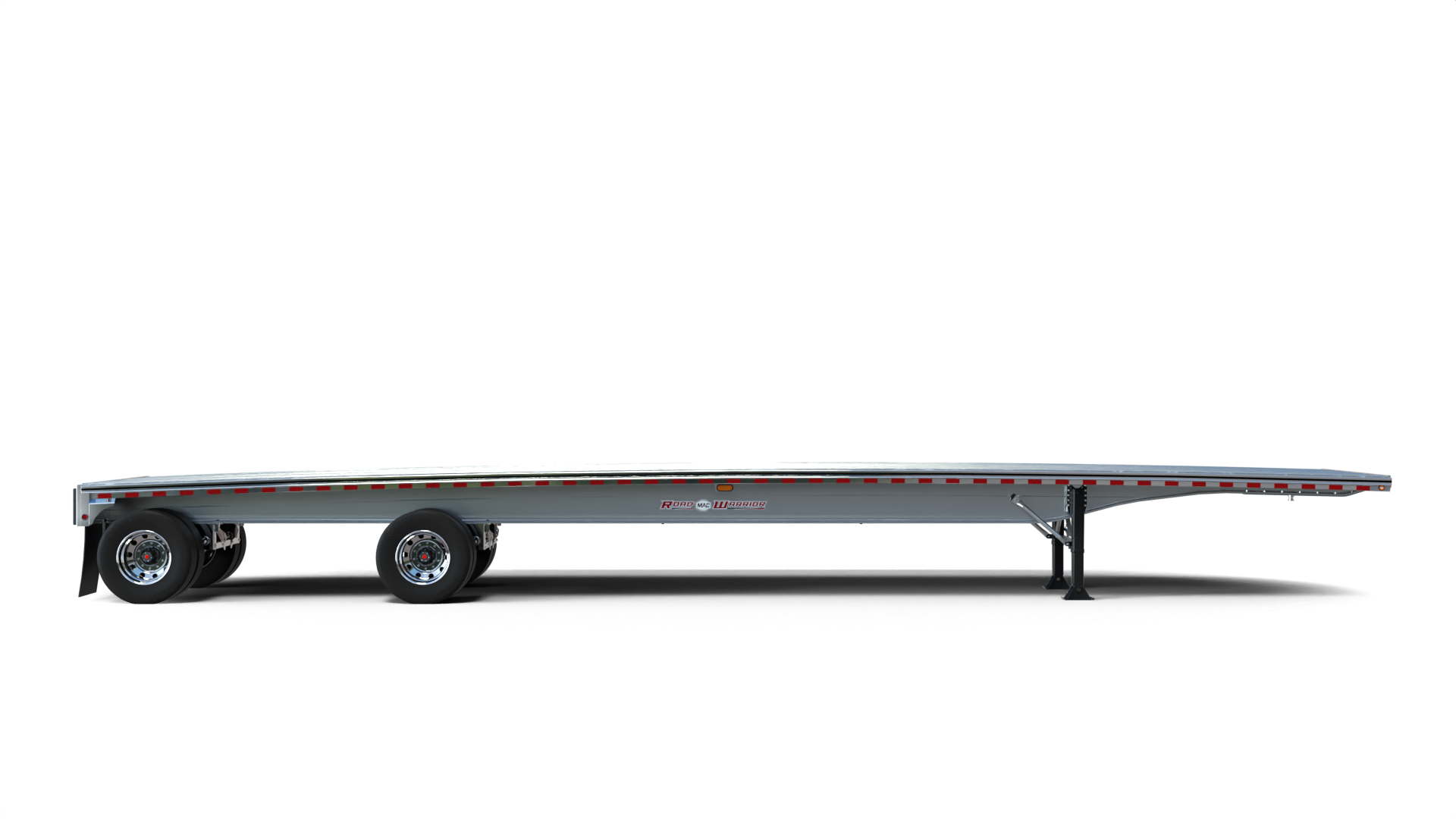

Built to earn its name, the Road Warrior flatbed is the ideal fleet-ready platform trailer that goes the distance. Fleet owners count on its all-aluminum build for corrosion-proof design and low maintenance. No frills. Less downtime. Just a dependable flatbed workhorse, often on the ground and ready to roll. When the haul is tough and the clock is ticking, the Road Warrior keeps your fleet moving.

Flatbed Specifications

Material	6061-T6 Aluminum
Main Beam	(2) T-Sections that are Assembled with Center Axis Weld Provides Minimum Stress to Frame Beams
Side Rail	6-3/4” Tall Open Backed Extrusion is Standard, 7” Heavy Duty Hollow Core Extrusion is Optional
Flooring	1-1/4” Extruded Hollow Core Tubular Sectioned with 1-1/4” Web Section and Knurled Top Surface. (2) Apitong Nailers Positioned Along Side Rail
Crossmembers	5” Tall Channel with 2” Capped Top Flange and 2” Bottom Flange Standard 16” O.C. Spacing
Lighting	Grote Ultra Blue Seal Harness & Wiring, LED Lighting, (5) Markers per Side. Rear lights (3) Large / (3) Small / (3) Large with Center Mid-Turn
Landing Gear	Jost AX150 with Drive Handle, Offers 55K Lift, Artic Grease, No-Lube, 10 Year Jost Warranty
Suspension	Hendrickson AANT-230 Tandem 122” Spread with Hendrickson Axles, TP Bearings (Same Large Inner and Outer Bearings) and Oil Bath Hubs
Literature	MAC Trailer Flatbed Product Brochure, MAC Trailer Road Warrior Product Brochure, MAC Trailer Multi-Axle Product Brochure, Flatbed Trailers Owners Manual

Specialized for your needs

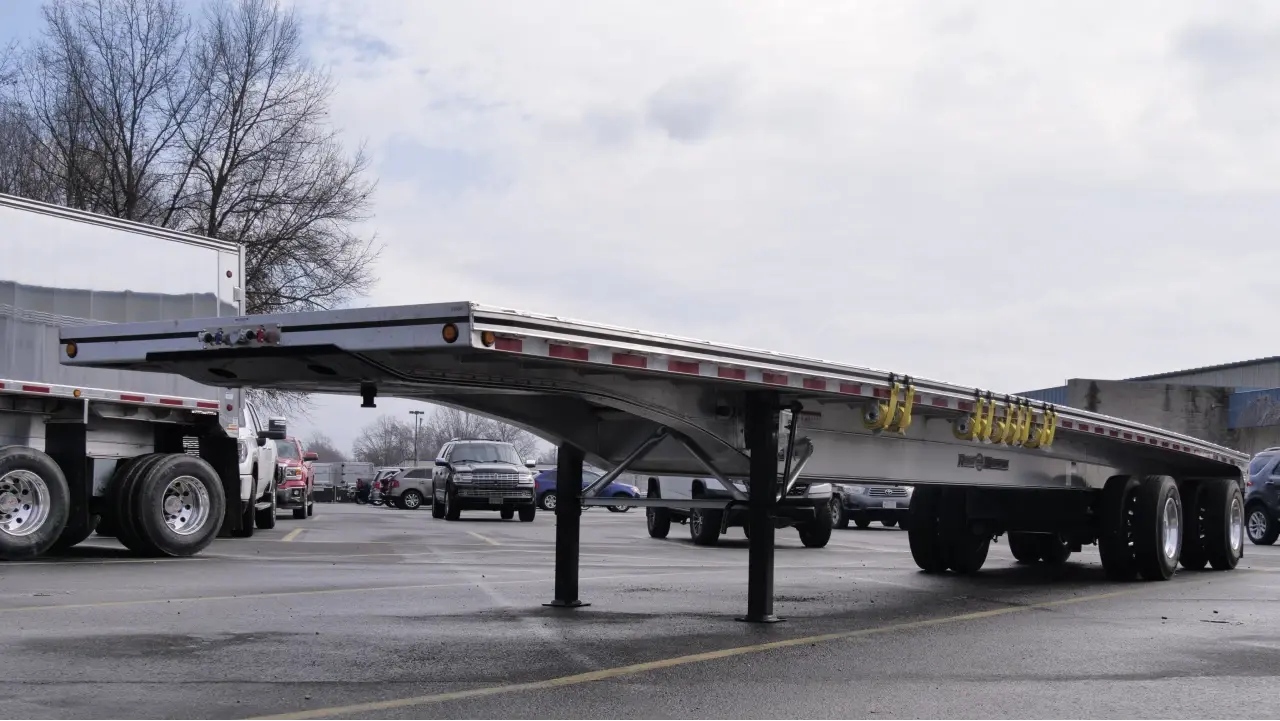

Load Securement Options
Rear Entry Stairway

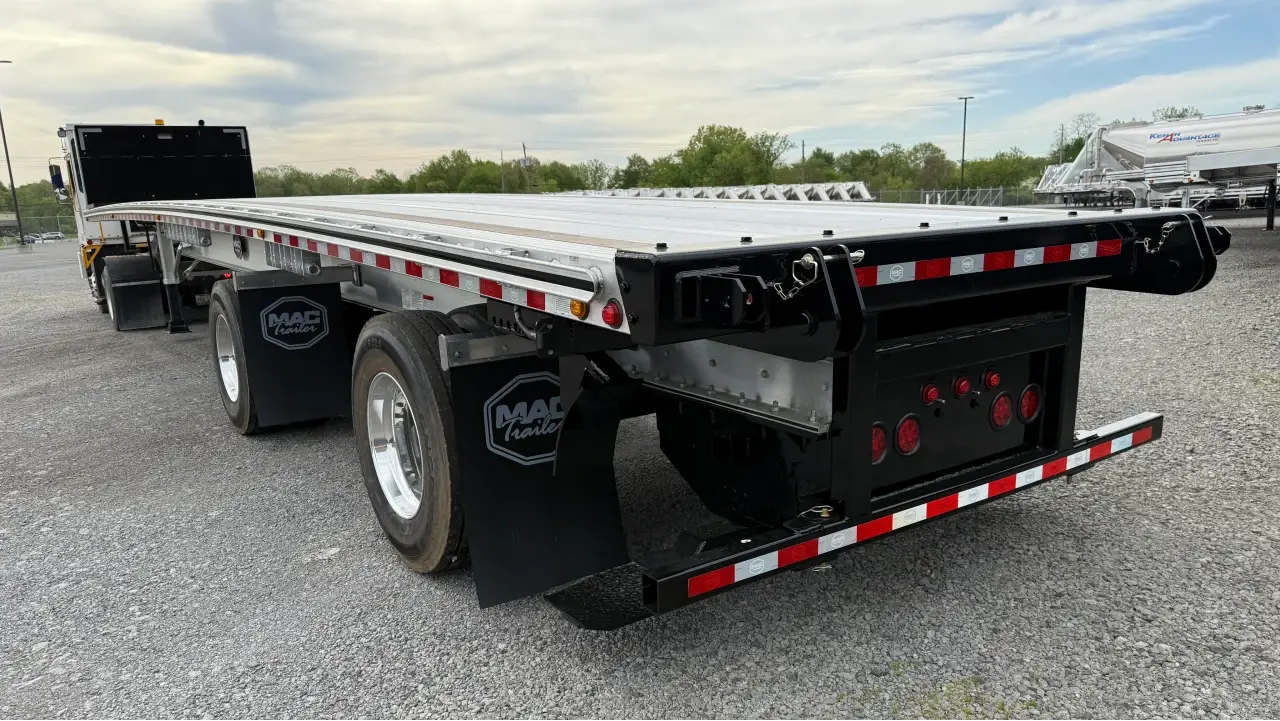

Moffett Kit

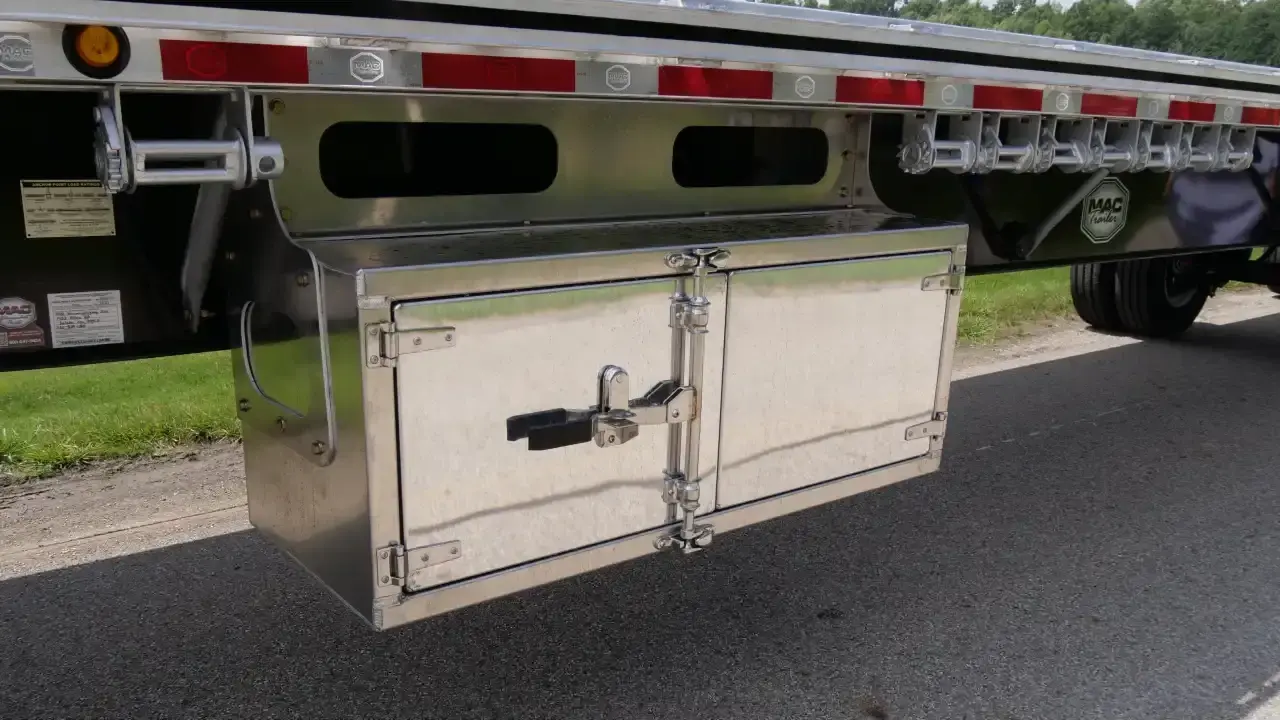

Tool Boxes

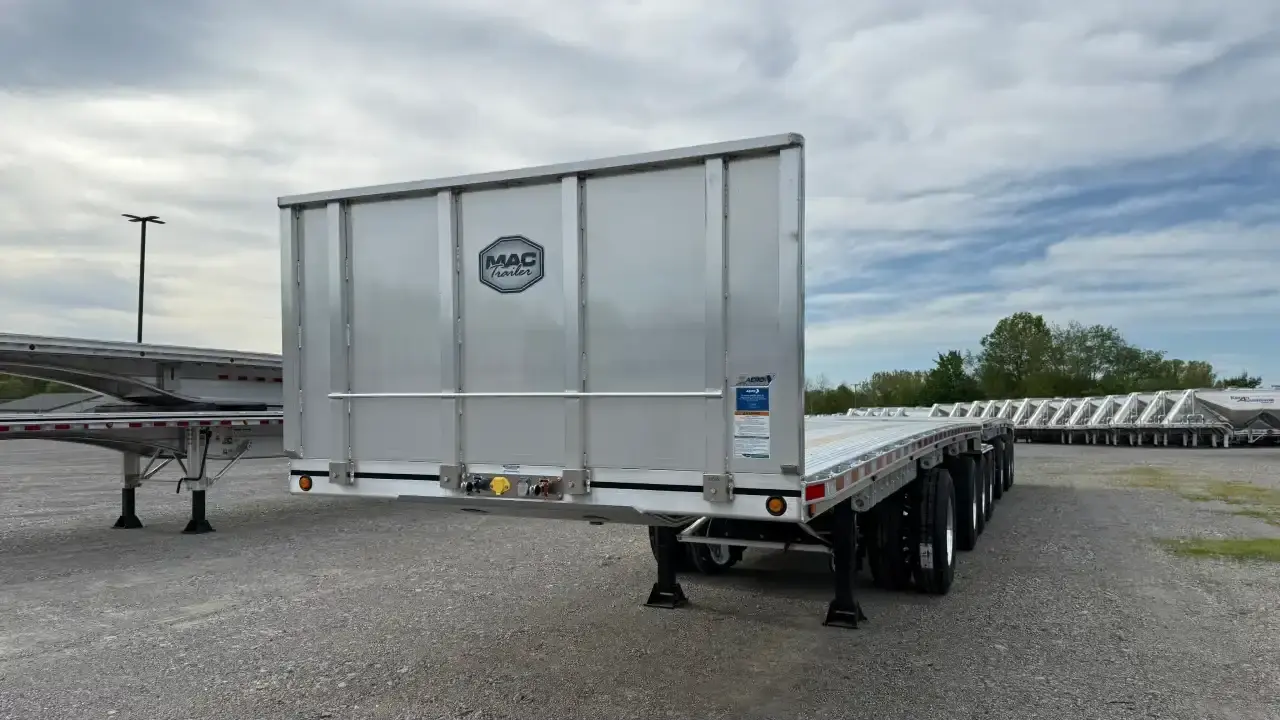

Bulkhead

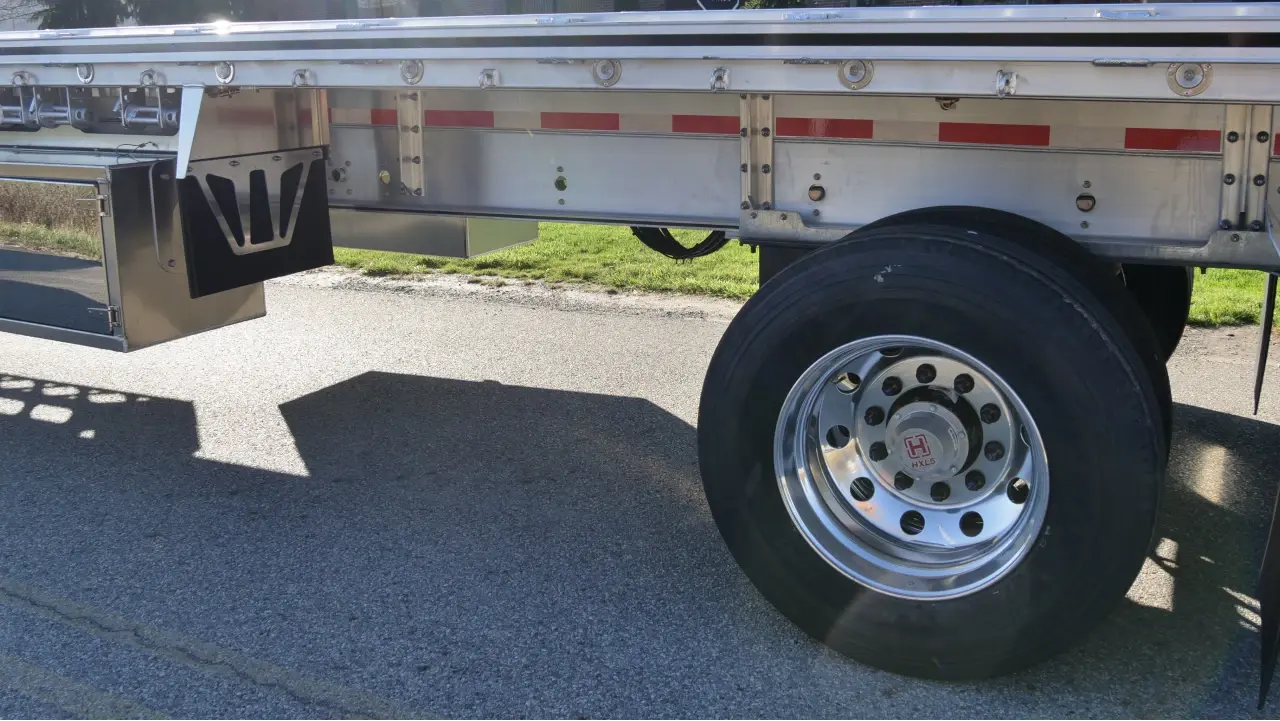

Rear Axle Slide

Load Securement Options

Rear Entry Stairway

Moffett Kit

Tool Boxes

Bulkhead

Rear Axle Slide

Specialized for your needs

Load Securement Options

Rear Entry Stairway

Moffett Kit

Tool Boxes

Bulkhead

Rear Axle Slide
