DOT 406

Aluminum Liquid Tank

SETTING THE STANDARD FOR 406 TANK TRAILERS

 The MAC Trailer DOT 406 aluminum tank is built with safety and efficiency in mind. They are available with customizable capacities, compartmentation, and axle configurations. Its lightweight aluminum construction and proven design deliver driver safety and efficiency with long-term value.

Request more info

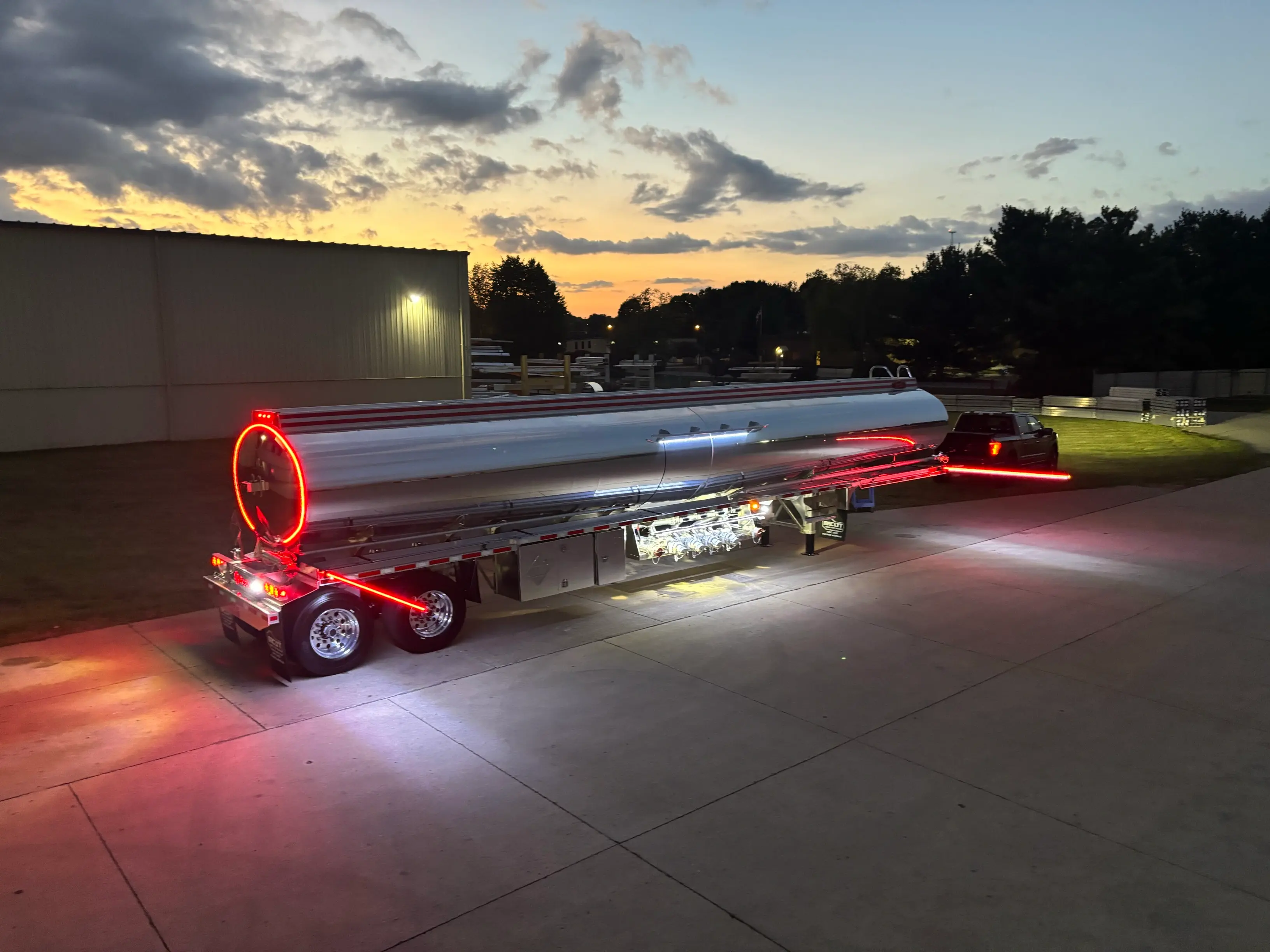

Patented Total Area Lighting Kit - T.A.L.K.®

The aluminum DOT 406 tank trailer’s T.A.L.K.® lighting system improves driver safety during loading and unloading by clearly defining a work zone around the discharge area, which is especially valuable in busy gas stations. The T.A.L.K. Rear Lighted Head also enhances visibility on the road.

T.A.L.K.

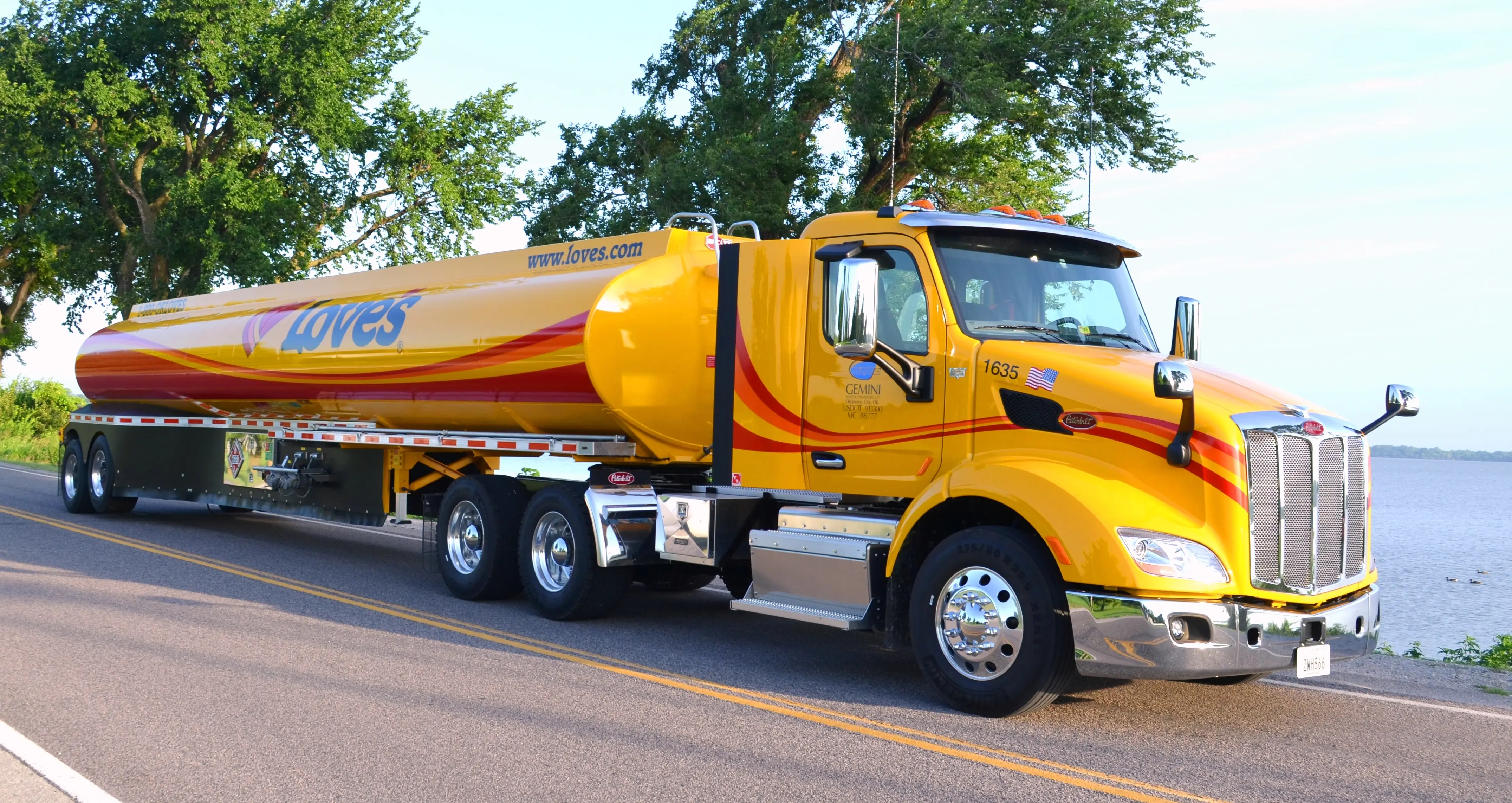

AERO Skirting™

 Our patented AERO Skirting™ is built with lightweight materials, designed to enhance aerodynamics and reduce drag. This innovative solution boosts the fuel economy of this liquid tank trailer, making it an ideal choice for those seeking to maximize efficiency and minimize operational costs.

Aero Pic

DOT 406 SPECIFICATIONS

Shell Two section aluminum 5454-H32 barrel 0.205" bottom, 0.179" top and sides (polished sides with mill finished top and bottom).
End heads 0.249" nominal 5454 0 temper aluminum flanged & dished heads (polished).
Baffles  .25" load bearing & 0.19" non-load bearing 5454 0T aluminum with large center hole, 3" holes at 9, 12, & 3 o'clock positions and bottom drain tunnel.
Suspension Hendrickson INTRAXX AANT23K, 23,000 lb. With galvanized hangers.
Landing gear  Jost AX150 Alumilight landing gear.
Ladder Front bolt-on aluminum at center of head. Rails to have rolled radius at top of ladder and top deck plate step.
Gauge stick  16 foot gauge stick and holder on curbside at rear with tension pin at front.
EVO cabinet One (1) 30" high single door box with overfill system and emergency valve controls with easy access drop down panel.
Discharge lighting

MAC T.A.L.K Interlock bar
Literature Liquid Tank Trailer Products Overview Brochure - Aluminum

Specialized for your needs

  • Accessible Control Pannel
  • Lighting Packages
  • Built-In Cabinet
IMG_9424

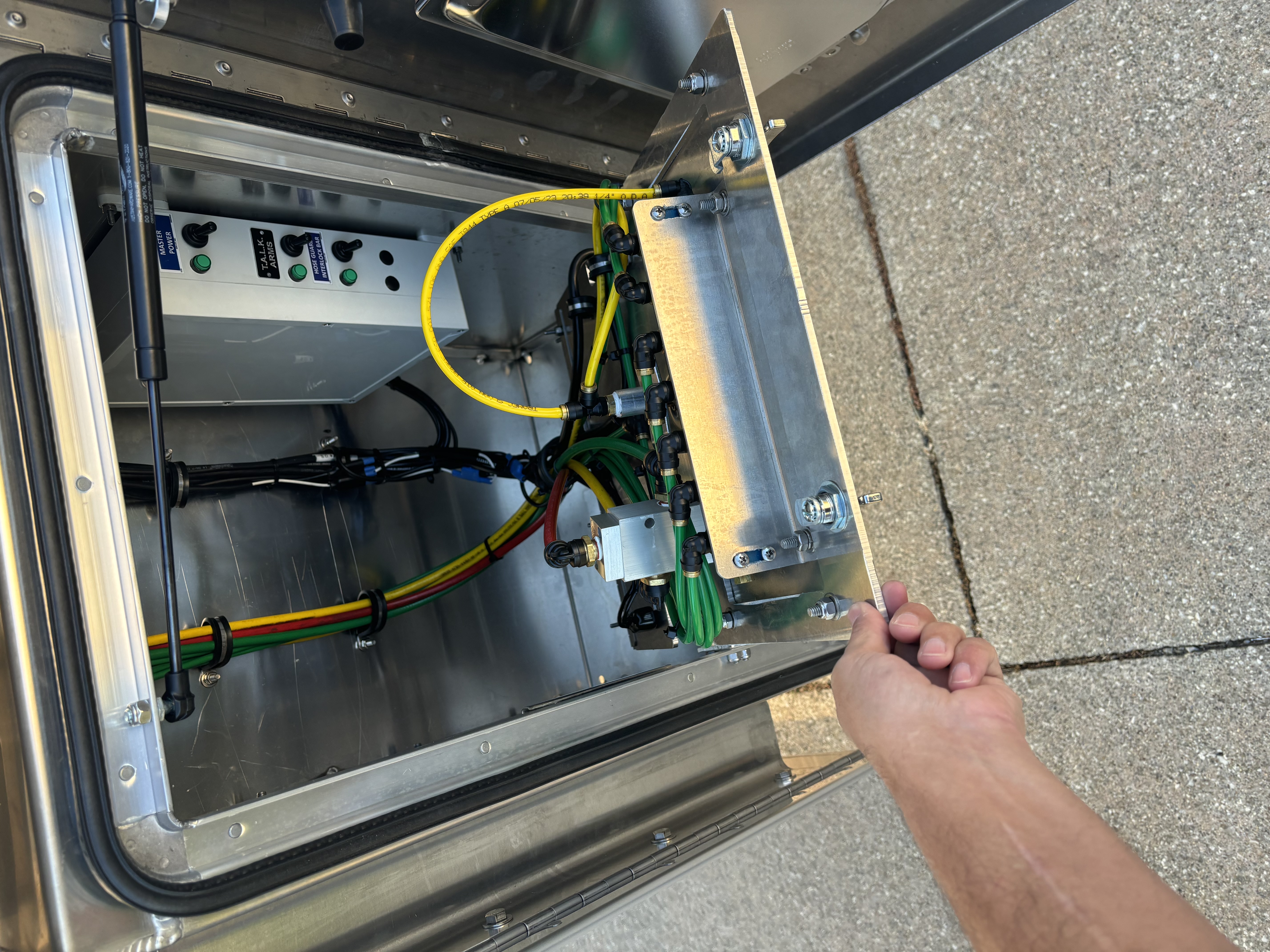

Accessible Control Pannel

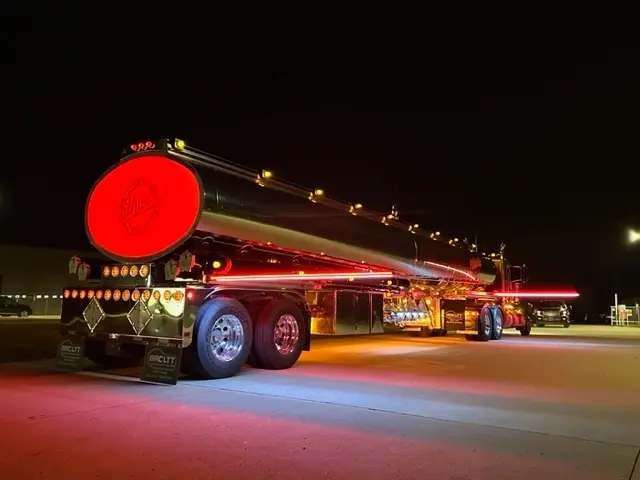

Lighting Systems

Lighting Packages

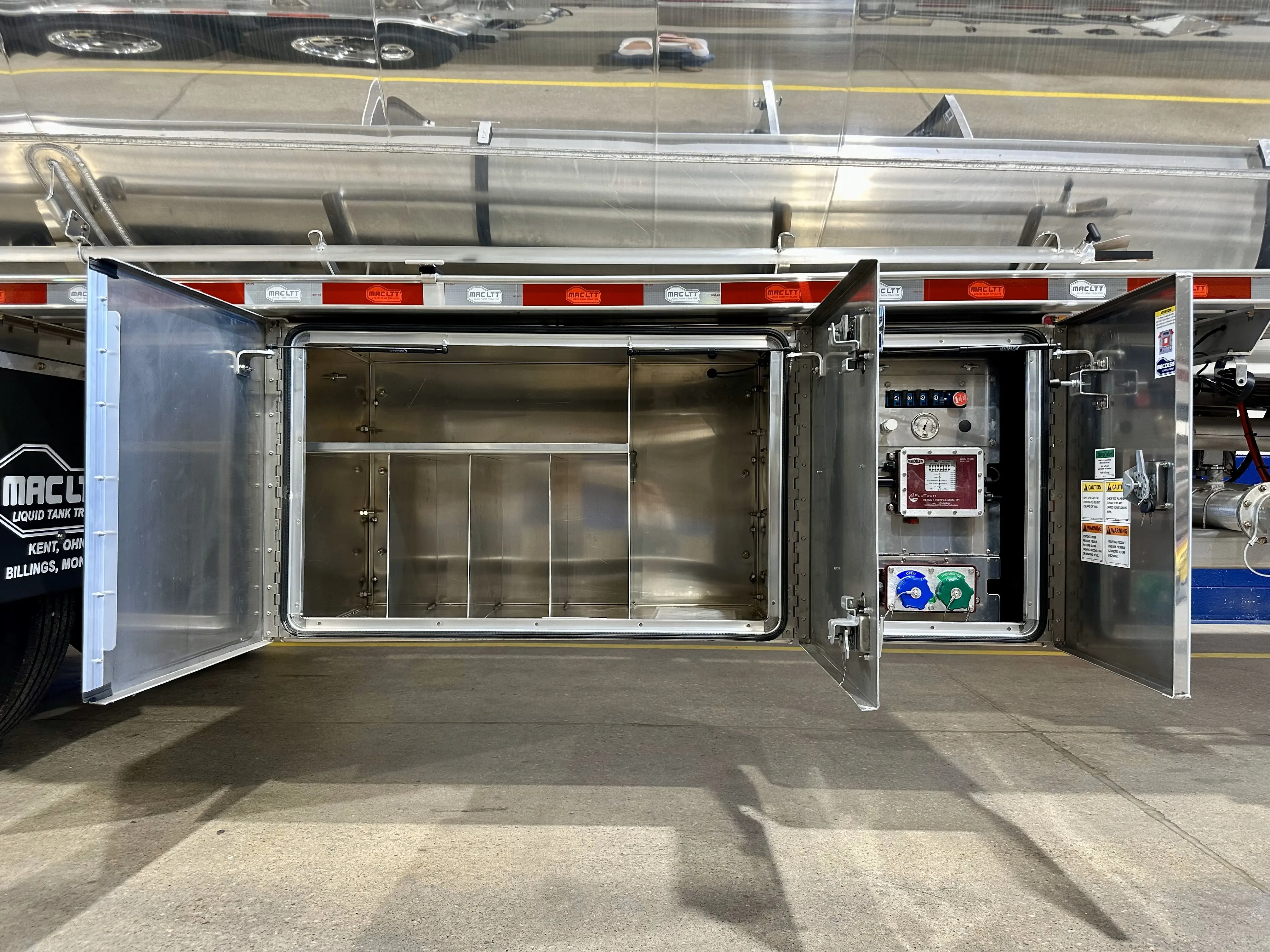

Cabinet Configurations

Built-In Cabinet

Specialized for your needs

Accessible Control Pannel
IMG_9424

Accessible Control Pannel

Lighting Packages
Lighting Systems

Lighting Packages

Built-In Cabinet
Cabinet Configurations

Built-In Cabinet
