DOT 407

Stainless Steel & Aluminum Liquid Tank

Versatile DOT 407 Tank Trailers

MAC Trailer DOT 407 tank trailers are designed for versatility across a wide range of applications, including petrochemicals, crude oil, and other chemical products. Available in stainless steel or aluminum, these trailers can be configured to meet a variety of hauling requirements. Built to perform in demanding environments, these trailers deliver dependable performance wherever the job takes them.

Request more info

Product Versatility

With flexible design options, MAC Trailer DOT 407 tanks can be configured to handle a variety of products and operating conditions. Interior lining options allow the trailer to be used with a broader range of chemical products, while available off-road packages support operations in more rugged environments. These customizable features help ensure the trailer is well suited for diverse applications across multiple industries.

407 1

Insulation Options

 MAC Trailer Stainless Steel DOT 407 tank trailers feature durable Polyiso insulation to help maintain proper operating temperatures for the liquids being hauled. Fiberglass is used on the end heads for additional insulation, supporting consistent performance in a variety of hauling conditions.

407 2

Dot 407 SPECIFICATIONS

 *AL = Aluminum, SS = Stainless Steel
Products Crude Oil, Ethanol, Denatured Alcohol, Refined Fuels, etc. (AL). Various Chemicals compatible with design of tank (SS).
Shell Two Section Aluminum 5454-H32 Barrel 0.219" Top, Bottom, and Sides. 2B Finish (AL). 12 Gauge Type 304 Stainless Steel. #4 Polished Finish (SS).
Manway(s) One (1) 20" DOT-407 Aluminum Manway Assembly located near center (AL). One (1) 19", 3-A sanitary, 2-Port, 4-Lug, SST Manway with White Hypalon Gasket, Located in Center (SS).
Weld Finish W-0 Conforms to TTMA RP-24 (AL). W-5 Inside, sanitary finish, W-0 Outside, as welded. Conforms to TTMA RP-24 (SS).
Suspension

Hendrickson Intraxx AANT23K, 23,000 lb.
Reinforced Rings

Aluminum External Rings fully welded to Shell (AL). Continuously welded stainless steel rings, per DOT requirements (SS).
Overturn Protection Overturn Protection: Aluminum Overturn Protection per DOT requirements (AL). Stainless Steel Overturn Protection per DOT requirements (SS).
Literature

Liquid Tank Trailer Products Overview Brochure - Aluminum

Liquid Tank Trailer Products Overview Brochure - Stainless Steel

Specialized for your needs

  • Cabinet Options
  • Axle Configurations
  • Insulation Options

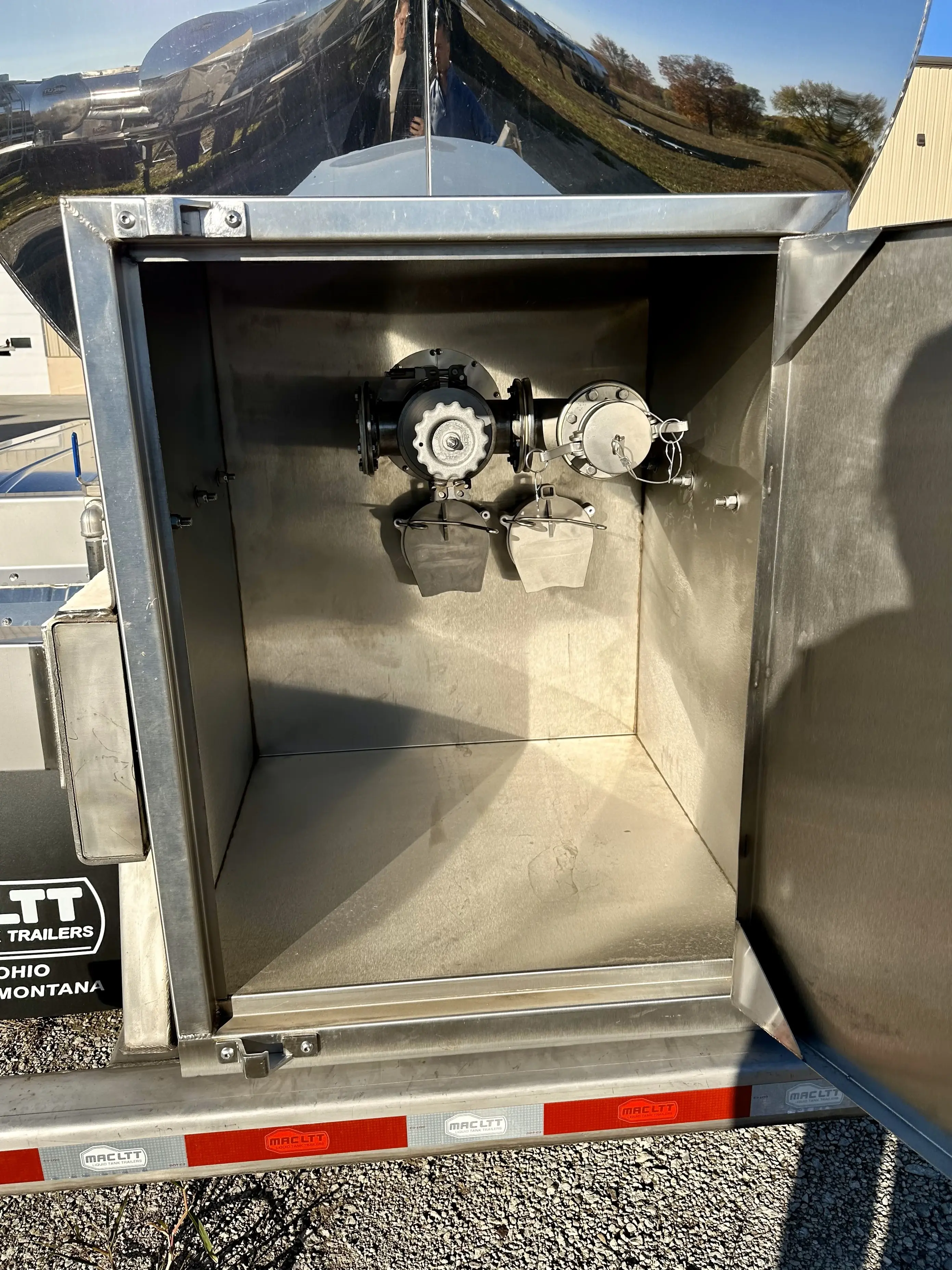

Cabinet Configurations (1)

Cabinet Options

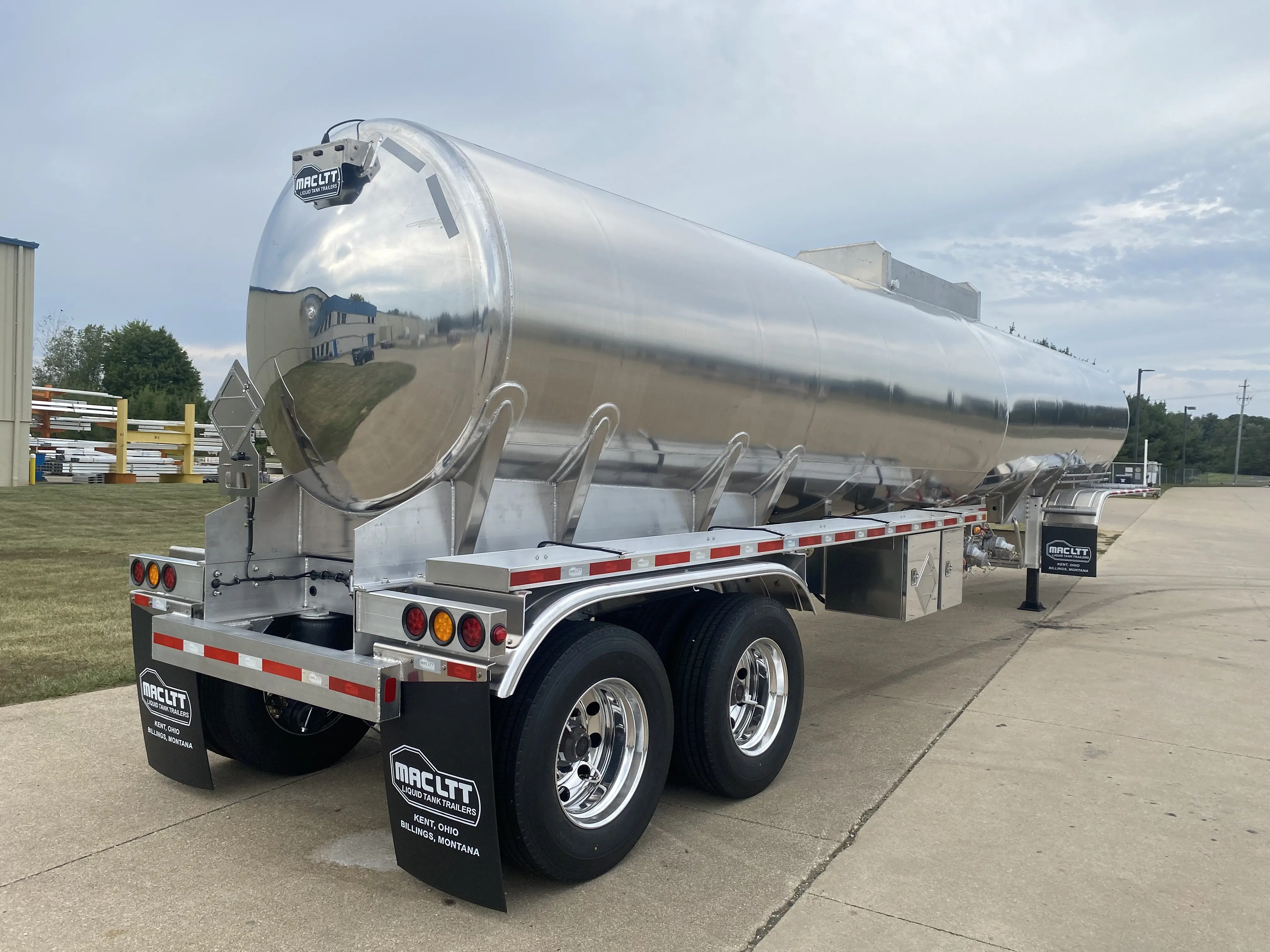

Axle Configurations

Axle Configurations

Insulation

Insulation Options

Specialized for your needs

Cabinet Options
Cabinet Configurations (1)

Cabinet Options

Axle Configurations
Axle Configurations

Axle Configurations

Insulation Options
Insulation

Insulation Options
