Fertilizer

Stainless Steel Liquid Tank

Fertilizer Tankers Built to Meet Your Needs

 MAC Trailer offers both tough external ring and internal ring designs for our liquid fertilizer trailers. With up to a 30” drop to center, these tanks maintain a low center of gravity that supports confident handling on the road. Built for demanding agricultural environments, each configuration delivers long-lasting durability and dependable performance. Versatile and efficient, these trailers are well-suited for a wide range of liquid fertilizer applications.

Request more info

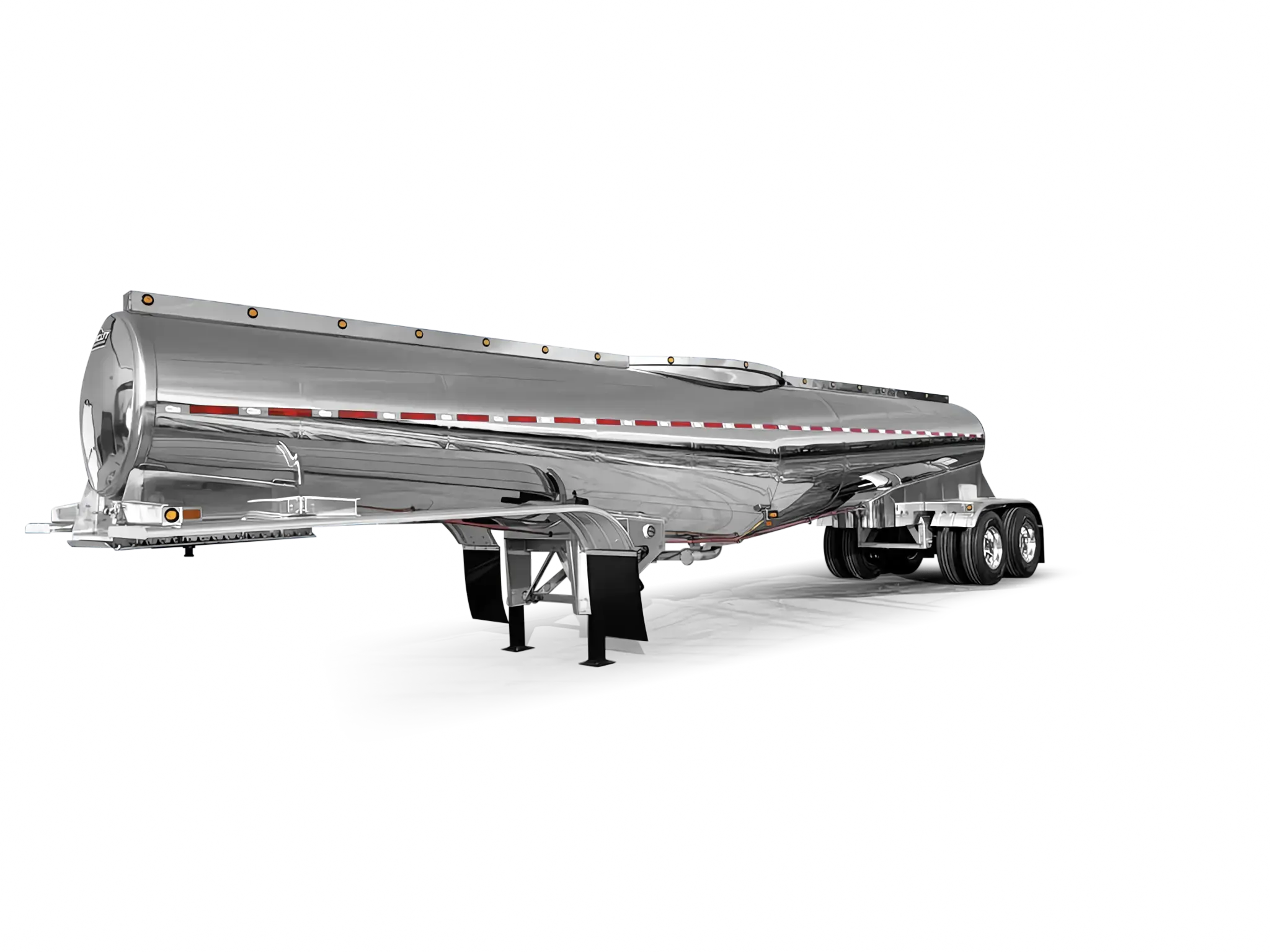

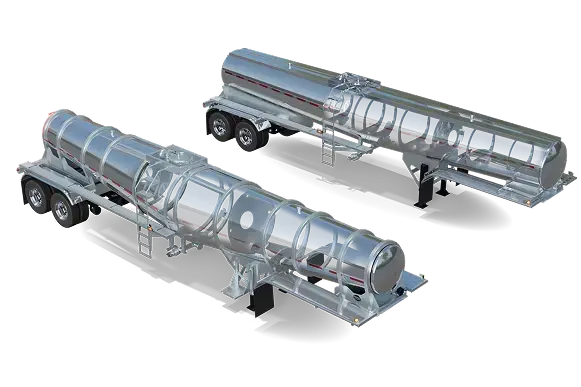

Internal Ring Design

Our rugged internal ring design delivers a durable, high-performance solution built for demanding applications. By combining a streamlined aerodynamic profile with a naturally low center of gravity, this design enhances stability on the road and supports efficient product handling. The internal ring construction provides long-lasting strength and durability, while maintaining a clean, polished look. Together, these features create a reliable, well-balanced trailer engineered for both safety and performance.

Internal Ring Design

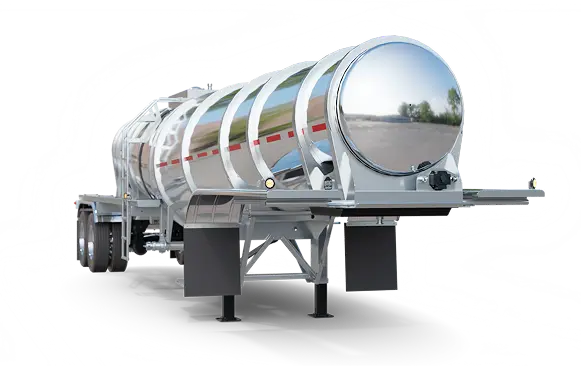

Piping Options

Flexibility is key when it comes to discharge options on our fertilizer trailers. MAC Trailer offers piping configurations on the roadside, curbside, and at the rear of the trailer, allowing you to choose the layout that works best for your operation. Many customers also choose to add a sparge line to their non-code fertilizer trailer for increased versatility.

Piping Options

FERTILIZER SPECIFICATIONS

Capacity  5,600 U.S. Gallons + 1%.
Shape  Double Conical 30" Deep Drop.
Baffles  Two (2) 10 Gauge SA240-304 Stainless Steel Full Circle Flanged Baffles.
Shell  SA240-304/304L 12 Gauge. 2B Finish Inside and Out.
End Heads  SA240-304/304L 10 Gauge (0.1345") Flanged & Dished Heads. 2B Finish Inside and Out.
Manway(s)

 One (1) 20" Stainless Steel, 4-Lug Manway Assembly with White Hypalon Gasket located near center of barrel.

Reinforcing Rings  Stainless Steel External Rings fully welded to Shell.
Frame Stainless Steel Frame at suspension, landing gear, and upper coupler plate area.
Suspension  Hendrickson Intraxx AANT23K, 23,000 lb. with Stainless Steel Hangers.
Literature

Liquid Tank Trailer Products Overview Brochure - Stainless Steel

Specialized for your needs

  • Cabinet Options
  • Pumping Systems
  • Lighting Packages
Cabinet Options

Cabinet Options

Pump Options

Pumping Systems

Lighting Options

Lighting Packages

Specialized for your needs

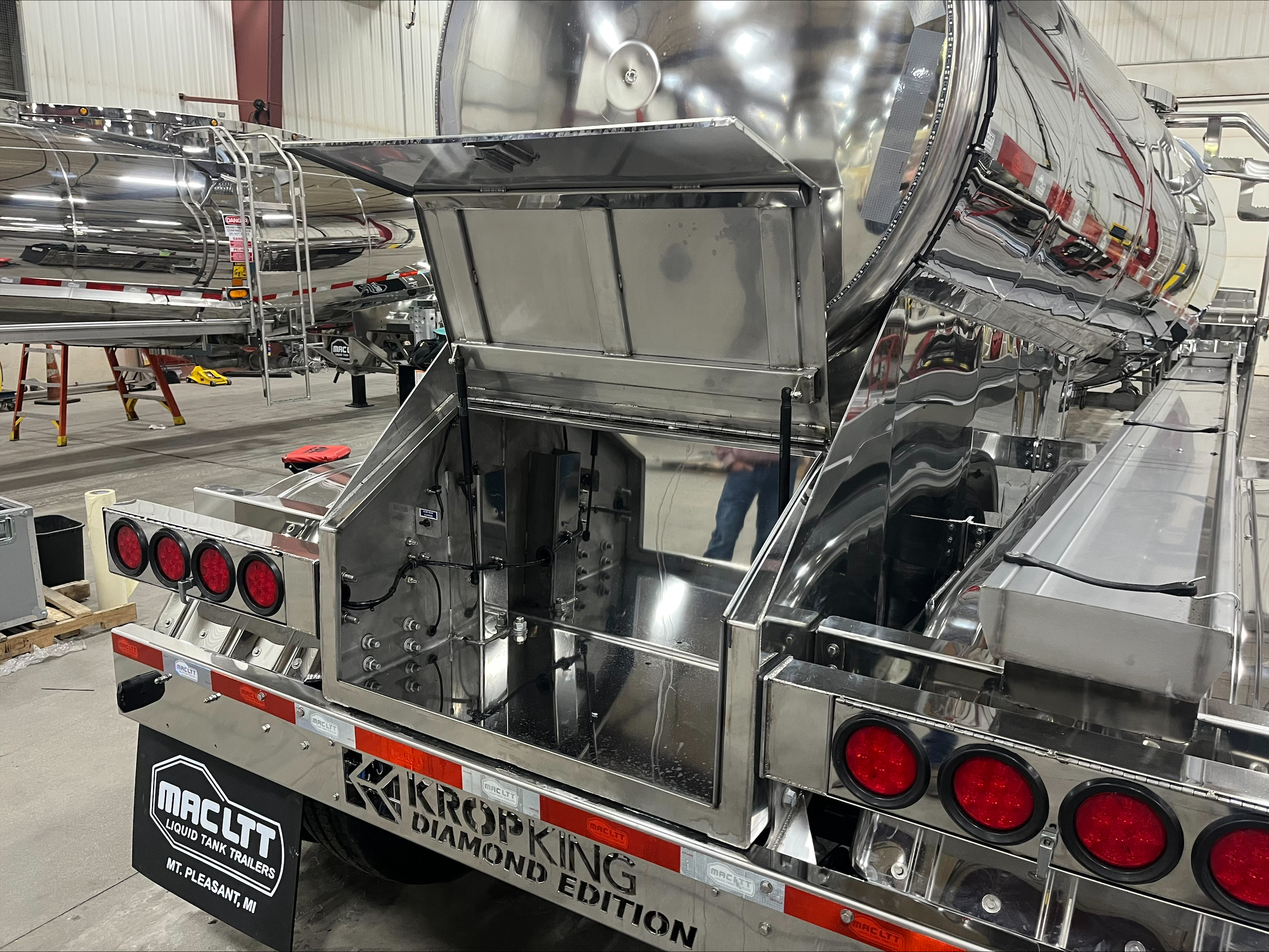

Cabinet Options
Cabinet Options

Cabinet Options

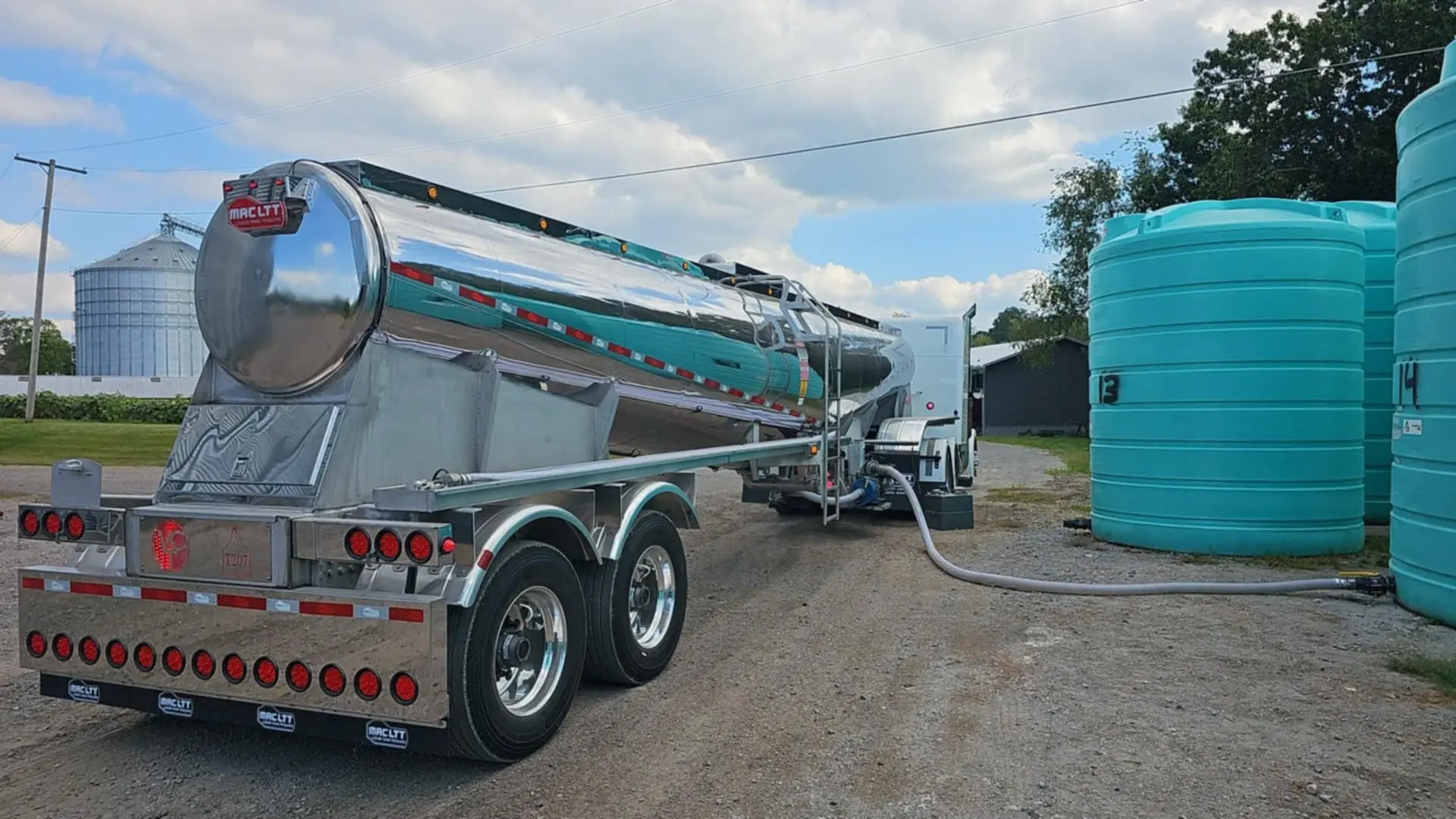

Pumping Systems
Pump Options

Pumping Systems

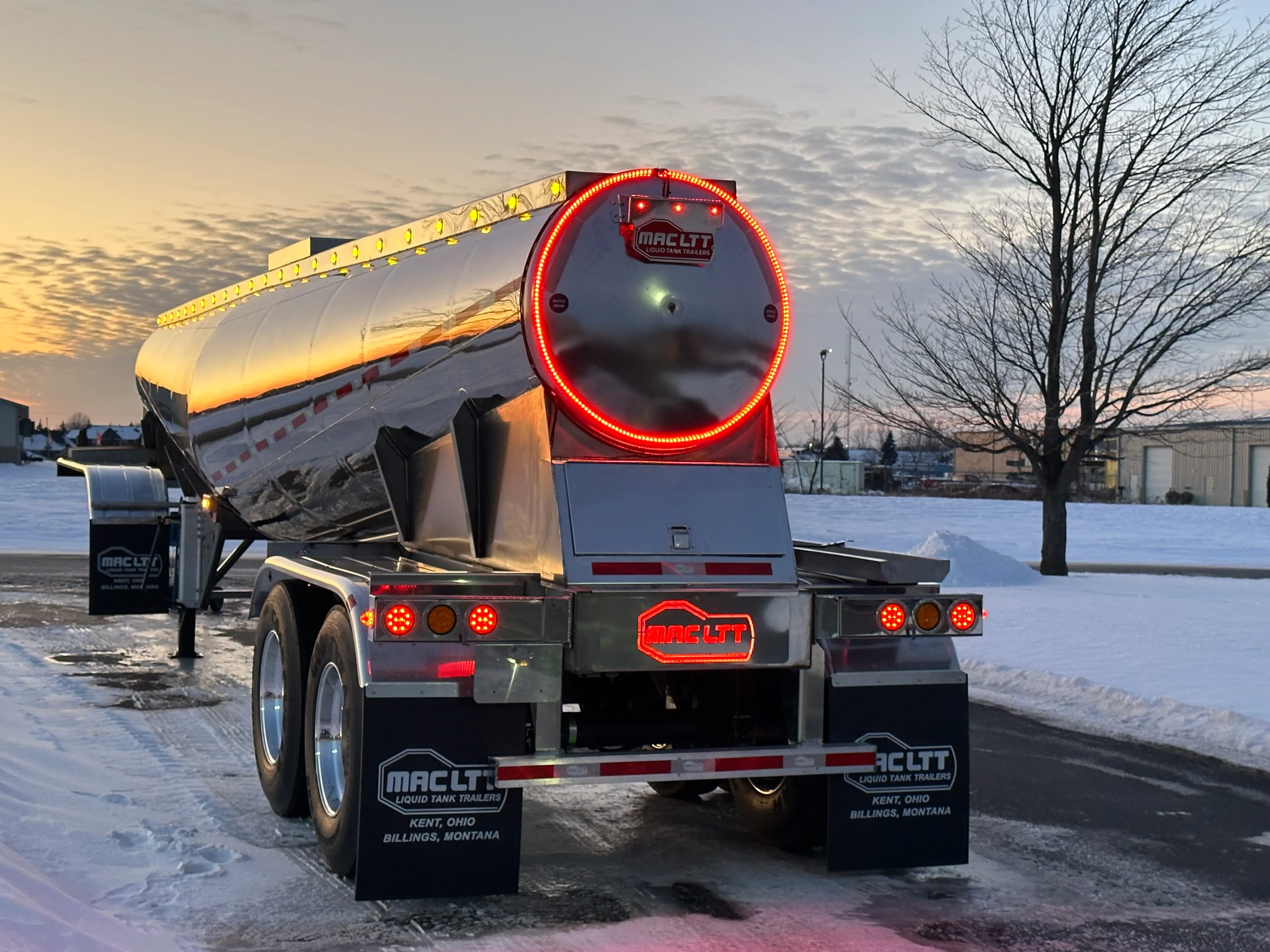

Lighting Packages
